WooCommerce

Last updated: October 30, 2026

Overview

Streamline your WooCommerce store’s transactions with our payment plugin, ensuring secure and efficient payment processing.

Our WooCommerce payment extension helps you launch or expand your business rapidly. If you are launching your business first time on WooCommerce, we can help you to quickly roll out through our configuration capabilities. If you are already on WooCommerce and thinking of expansion, we offer a wide variety of secure local and global payment options.

Our WooCommerce extension which is built on Payments Orchestration Platform delivers a competitive advantage over payment gateways including payment processing optimization and advanced analytics through a single integration. We help you manage payments across multiple P2Ps, acquirers and banks across all channels — online, mobile or recurring — using a strategic, streamlined approach.

↑ Back to top

Compatibility

Our plugin supports the following versions:

• Woocommerce - 9.1.2
• Wordpress - 6.6.1

↑ Back to top

Configure

You need the Entity ID, API key and webhook decryption key from the Onboard section.

Open the plugin settings

Navigate to the Payment Settings:

1. Go to: WooCommerce >Settings >Payments.
2. Click ‘Finish set up’ to see the configuration page for a specific payment method.

Figure 1: Open the plugin settings

Field reference

General Setting

window.wpwlOptions = {
style: "plain",
    googlePay: {
        gatewayMerchantId: "ValueOfYourEntityID",
    },
  };

Sample Configuration

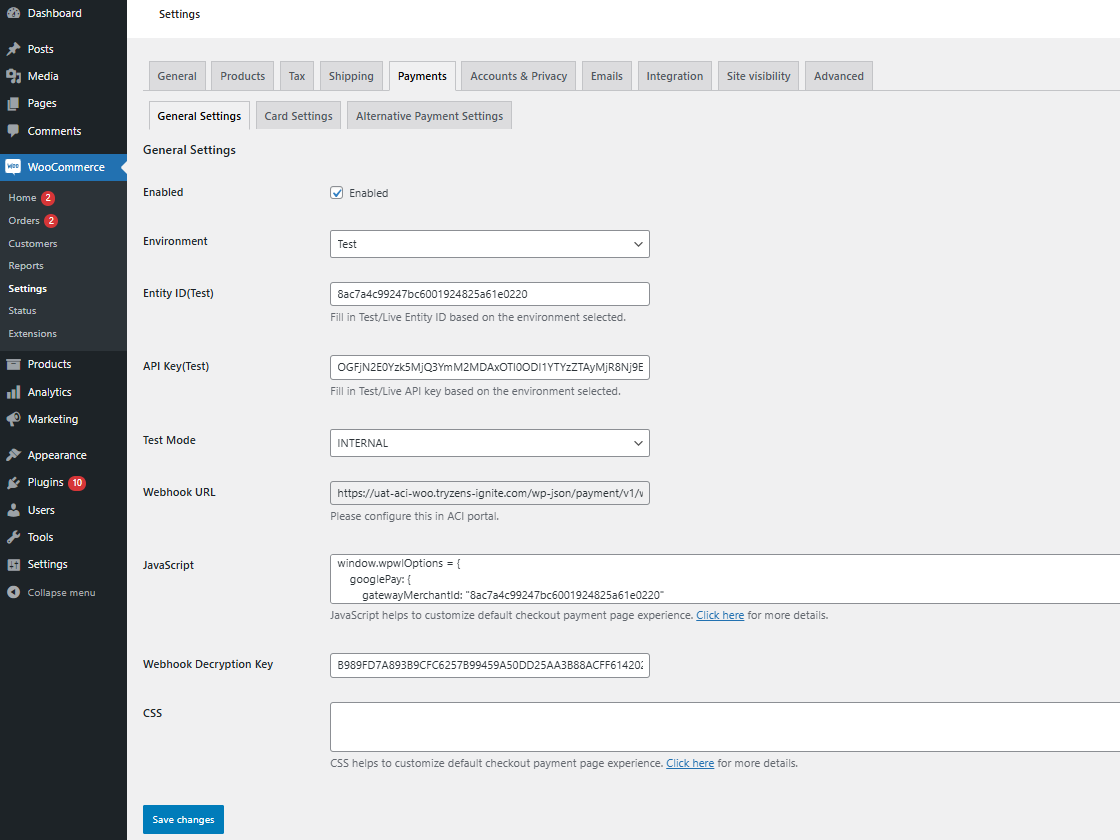

Figure 2: Sample Configuration

Please refer to the detailed installation and Configuration Guide.

↑ Back to top

Onboard

After plugin installation, please follow the instructions to configure the extension in WooCommerce and in Open Payment Platform using configuration details.

You will need to configure merchant accounts and brands in Open Payment Platform to work with checkout using plugins.

Credentials from the Open Payment Platform

To start processing with plugins, plugin configuration in the Open Payment Platform needs to be enabled for your PSP or merchant. Without this configuration, you won’t be able to send transaction requests from the plugin platform to the payment platform for processing.

Please contact your account manager or project team to enable plugin usage from the Open Payment Platform.

You will need the following information from the Open Payment Platform to configure and onboard with the payment plugin:

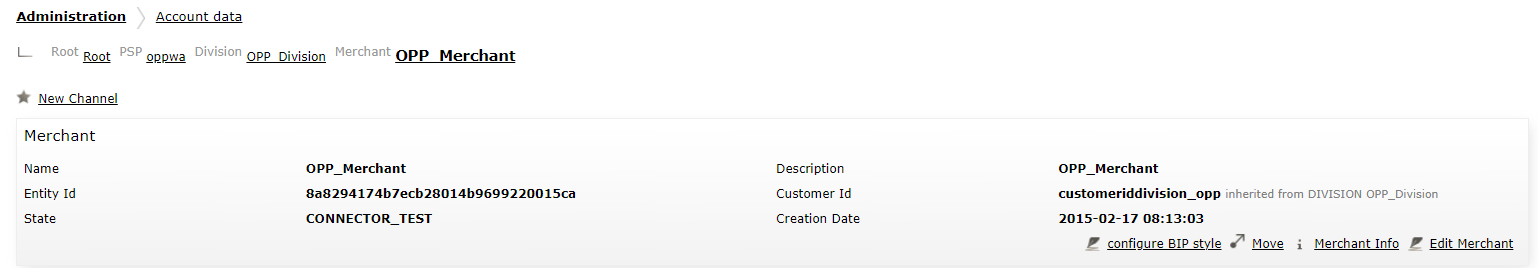

Figure 3: Credentials from the Open Payment Platform

Webhook configuration

The webhooks are HTTP-based callbacks that notify your plugin platform of all the events you subscribed for on an entity. Instead of constantly polling for updates, a webhook is set up once and only sends data when a specific event occurs. The events can be about tokens, payments, payment schedules, risks, or any transaction state updates related to payments or transactions connected to a payment, it is necessary to configure webhooks for seamless communication and transaction updates.

Merchant/PSP to configure webhooks and generate the webhook decryption key in the Open Payment Platform for
webhook handling.

Steps:

1. Login to merchant dashboard (Open Payment Platform)
2. Select your division (here OPP_Division)
3. Go to Administration - Webhooks
4. Click on the “Add New Webhook” button

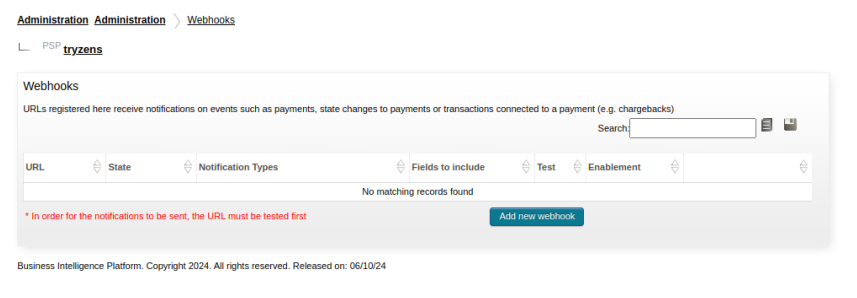

Figure 4: Webhook configuration

Follow further steps below to configure Webhook

1. URL: Get the webhook URL from the plugin admin configuration page.
2. Notification types: Select the notification types as required by the merchant
3. Fields to include: Select the option as required by the merchant
4. Secret for encryption: (Copy the value and add in the “Webhook Decryption Key” field under general settings in WooCommerce check Sample Configuration)
5. Wrapper for encrypted notification: JSON
6. Emails: Enter email IDs to receive a notification alert
7. Save

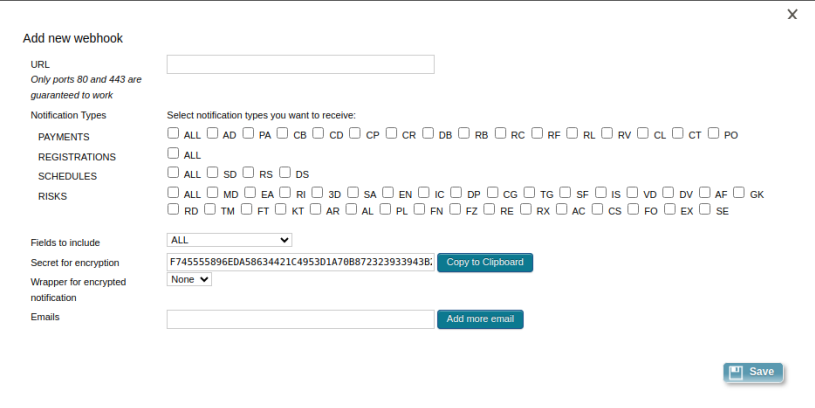

Figure 5: Webhook configuration (continued)

↑ Back to top

Features

Payment types

Note - Some functionalities available in the plugin might not be supported by the connector in use. Please refer to the respective connector integration sheet for details.

Features

We have standard plugin integration with WooCommerce using our Open Payment Platform Integration option, that give you access across all the features and uses the WestpayAPI to present payment options to your shoppers

↑ Back to top

Supported fields

As part of the integration with the plugin platform, we have integrated the following fields. Please note this is only informational; you don't need to worry about how to send these fields or integrate them. Plugin extension takes care of it.

Note - the below fields are supported as standard, if any specific fields need to be supported for APM for the Card brand, please get in touch with your account manager.

↑ Back to top

Resources

• Installation documents on GitHub: https://github.com/ACI-plugin/aci-woo-commerce/tree/main/documents
• GitHub repository: https://github.com/ACI-plugin/aci-woo-commerce
• Demo storefront (test environment): https://uat-aci-woo.tryzens-ignite.com/
